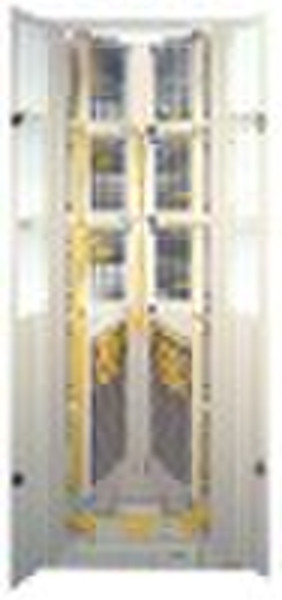

Optical Distribution Frame

Main Technical Parameters Environment Requirements Working Temperature: -5°C +40°C Storing Temperature: -25°C +55°C Relative Humidity: ≤85%(at +30°C ) Air Pressure: 70 106Mpa Photoelectrical Features: Optical Fiber Connector(including adapter and pigtails) Insertion loss:≤0.35dB (PC type, multi-mode (1300nm) or single-mode (1310nm/1550nm)), ≤0.45 dB(APC type, single-mode(1310nm/1550nm)) Return loss:≥45dB (PC type, single-mode (1310nm/1550nm)) ≥60dB(APC type, single-mode(1310nm/1550nm)) Push-Pull Endurance life: 500times High Voltage Protection: Grounding devices connected with metal reinforced cores and metal jacket. The insulation resistance between ground device and rack ≥1000ΜΩ /500V(DC) The dielectrical strength between grounding device and rack ≥ 3000V (DC)/1min, without breakdown or flashover. Type Size (H×W×D)mm Capacity (core) Remarks GPX156A-40 2000×240×225 40 Fusion-distribution Separated GPX156A-50 2200×240×225 50 Fusion-distribution Separated GPX156A-70 2600×240×225 70 Fusion-distribution Separated GPX156A/D-72 2000×240(300)×300 72(72) Number before bracket is for Fusion-distribution Separated type, number in bracket is for fusion-distribution integrated type GPX156A/D-108 2200×240(300)×300 84(144) GPX156A/D-144 2600×240(300)×300 96(144)
